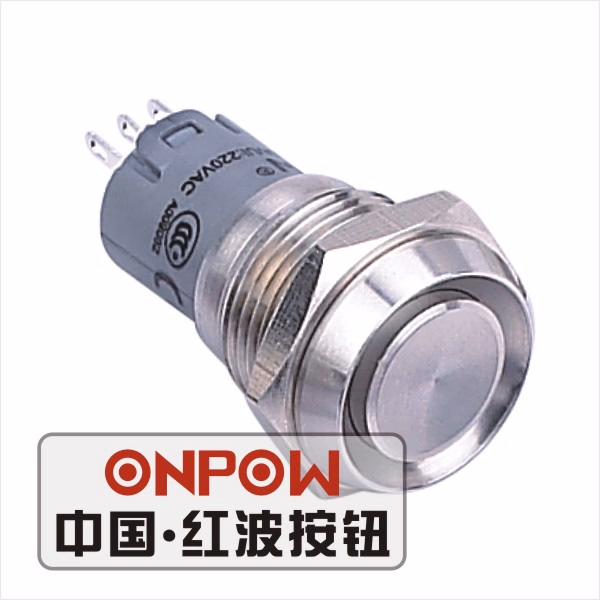

Onpow 16mm Pushbutton Switches (LAS2-GQC-11/S, CE, CCC, RoHS, REECH)

Part number:LAS2GQC-11/S
Diameter: 16mm
Switching rating: 3A/250VDC
Contact configuration: 1NO1NC / 2NO2NC
Operation type: Momentary (other option: Latching (Z))
Front shape: Concave Round
Crust material: Stainless steel (S)
IP degree: IP40 and IK09 / FP:IP67 and IK09
Terminal type: Pin terminal (1.8X0.4mm)
Approval: CE,CCC,RoHS

Switch Ratings

Rated Insulation Voltage			Ui:250V
Thermal Current			lth:3A
Rated Voltage			12V	24V	110V	220V
Rated Operation Current	AC 50/60Hz	Resistive load			1A	0.5A
	AC 50/60Hz	Inductive load			0.7A	0.5A
	DC	Resistive load	1A	1A	0.2A
	DC	Inductive load	0.7A	0.7A	0.1A
Contact material			Sliver Alloy

Lamp ratings

Lamp type	LED Lamp(AC/DC)
Rated voltage	AC/DC6V,AC/DC12V,AC/DC24V,AC/DC36 V,AC/DC110 V,AC/DC250 V
Rated Current	5~48V About 15mA;110~250V About 2mA
LED color	Red,Green,Yellow,Orange,Blue,White
Life	About 40,000 hours
Dropping Way	Inner resistance;Outer resistance when using 6V lamp
Lamp Circuit	Using AC/DC LED lamp,the terminal is have no difference of anode and cathode:Using inner resistance,do not need connect outer resistance. (Using 6V lamp when the lamp voltage is above 60V,and need connect outer dropping resistance.)

Note:DC LED and other voltage can be made to order.

Specifications

Operating Temperature	-25ºC~+55ºC(no freezing) Keep the air flowing around illuminated on pushbutton
Operating Humidity	45~85%RH(no condensation)
Contact Resistance	≤50mΩ
Insulation Resistance	≥1000MΩ
Dielectric Strength	2000V,AC 50Hz,5 seconds
Vibration Rasistance	50Hz,Amplitude 1.2mm
Shock Rasistance	>10g
Solder Heat Resistance	320ºC(or 30W soldering iron)no more than 2 seconds
