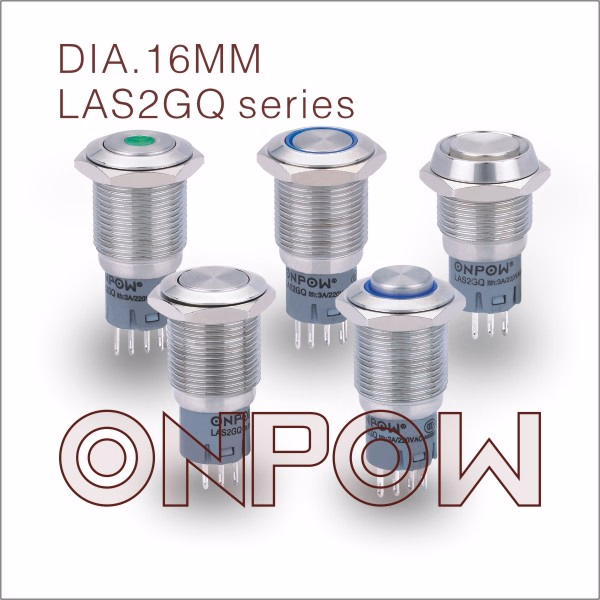

Part number: LAS2-GQ series (16mm,CE,CCC,ROHS)
- Φ16mm Diameter Metal push button switch
- Switch Rating: Ith:3A, Ui:250V
- Contact Configuration:1NO1NC(11) / 2NO2NC(22)
- Operation Type: Momentary / Latching(Z)
- Head shape:Flat head/High flat head
- LED Color: Red / Green / Yellow / Orange / Blue / White
- LED Voltage: 1.8V to 250V
- The Crust Material: Stainless steel / Nickel-plated brass / Aluminium Alloy black anodized
- IP Degree: IP40,IP67
Switch Ratings
Rated Insulation Voltage | Ui:250V | |||||
Thermal Current | lth:3A | |||||
Rated Voltage | 12V | 24V | 110V | 220V | ||
Rated Operation Current | AC 50/60Hz | Resistive load | 1A | 0.5A | ||
Inductive load | 0.7A | 0.5A | ||||
DC | Resistive load | 1A | 1A | 0.2A | ||
Inductive load | 0.7A | 0.7A | 0.1A | |||
Contact material | Sliver Alloy |
Lamp ratings
Lamp type | LED Lamp(AC/DC) |
Rated voltage | AC/DC6V,AC/DC12V,AC/DC24V,AC/DC36 V,AC/DC110 V,AC/DC250 V |
Rated Current | 5~48V About 15mA;110~250V About 2mA |
LED color | Red,Green,Yellow,Orange,Blue,White |
Life | About 40,000 hours |
Dropping Way | Inner resistance;Outer resistance when using 6V lamp |
Lamp Circuit | Using AC/DC LED lamp,the terminal is have no difference of anode and cathode:Using inner resistance,do not need connect outer resistance. (Using 6V lamp when the lamp voltage is above 60V,and need connect outer dropping resistance.) |
Specifications
Operating Temperature | -25ºC~+55ºC(no freezing) Keep the air flowing around illuminated on pushbutton |
Operating Humidity | 45~85%RH(no condensation) |
Contact Resistance | ≤50mΩ |
Insulation Resistance | ≥1000MΩ |
Dielectric Strength | 2000V,AC 50Hz,5 seconds |
Vibration Rasistance | 50Hz,Amplitude 1.2mm |
Shock Rasistance | >10g |
Solder Heat Resistance | 320ºC(or 30W soldering iron)no more than 2 seconds |
