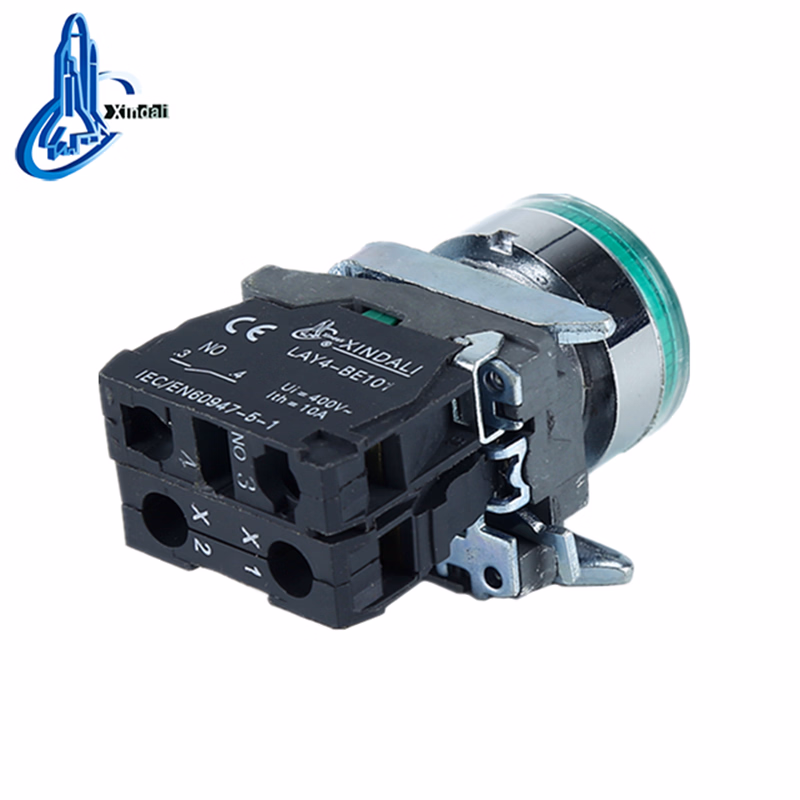

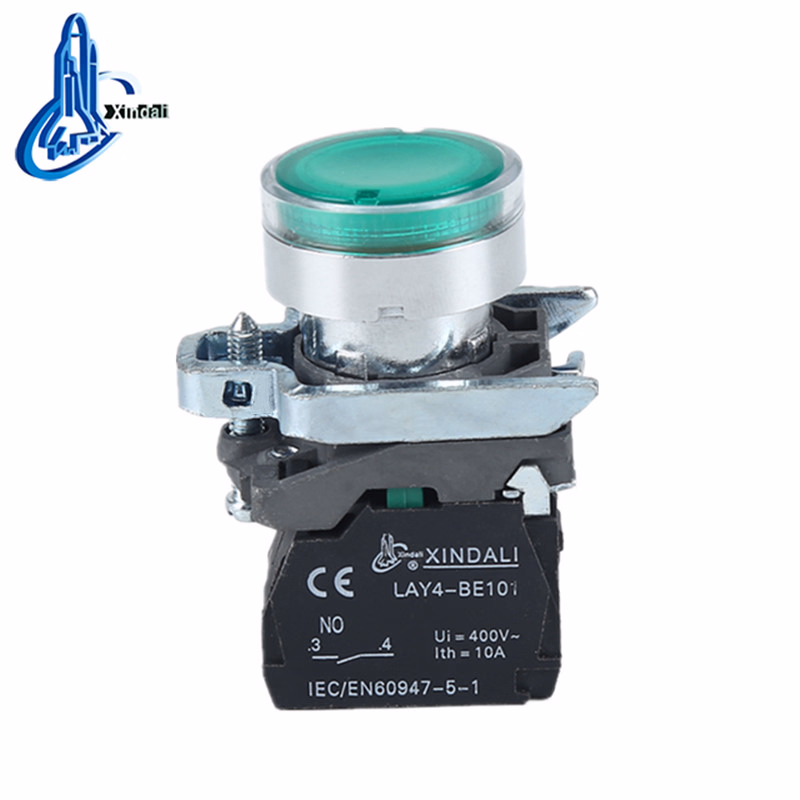

Product Description
![Lay4-Bw3361 Flush Metal Light Switch Electrical Spring Push Button Switch](https://img3.grofrom.com/grewave/75fe4f5fbc2bd38729d9640b6547e0a3.webp)
![Lay4-Bw3361 Flush Metal Light Switch Electrical Spring Push Button Switch](https://img3.grofrom.com/grewave/cf29bbe73a5245707a579ee2ae429d9e.webp)
![Lay4-Bw3361 Flush Metal Light Switch Electrical Spring Push Button Switch](https://img3.grofrom.com/grewave/72bb025e4fb12a689de44c2b7bd7a8ca.webp)
![Lay4-Bw3361 Flush Metal Light Switch Electrical Spring Push Button Switch](https://img3.grofrom.com/grewave/3192ec989a390a6665ac32b0235cac91.webp)
Product Application
The push button series are used in controlling circuit of AC voltage up to 660V/AC50Hz or 60Hz,and DC voltgae below 400V.It is used for controlling signal and interlocking purposes.The main body of the push buttons adopts zinc alloy and high-grade anti-flam plastic.The contact adopts special silver alloy in order to enjoy the benefit of high anti-electrical erosion.The signal lamp series are suitable for electrical appliances circuit of AC voltage up to 380V/50Hz,and DC voltage below 380V.It is ideal for using as indicating signals,warning signal,emergency signal,etc.Our products comply with GB/T14048.1 and IEC60947-5-1,all prouducts are CE,IOS9001,ROSH and UL certified.Main technical parameter | ||||
Basic technical parameter of button | Basic technical parameter of signal lamp | |||
Rated insulation | AC 600V(50Hz/60Hz) | Insulation resistance | ≥50MΩ | |
Conventional heating current | 10A | Contact resistance | ≤25MinΩ | |
Insulation resistance | ≥50MΩ | Pf withstand voltage | AC 2.5KV/min | |
Contact resistance | ≤25MinΩ | Voltage wave | ±20% | |
Mechanical life | 100x10000 pushbutton | 50x10000 selector switch | Brightness | 60cd/m2 |
Electrical life | 500x10000 pushbutton | 25x10000 Selector switch | Continuous working life | 10x10000h |
