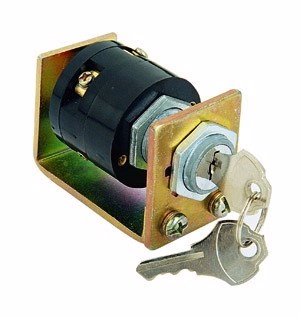

DESCRIPTIONS:

• Brass made flat keys, Green nickel-plated.
• Key may be withdrawn in one or both positions.
• Silver plated contacts and terminals.
• 2 position (off-on) 6 terminals.
• Hex nut or speed clip mounted.
• 1-1000 combinations available.

 SPECIFICATIONS:

• Contact Rating: 20A 125VAC, 15A 250VAC.
• Contact resistance: 30 Milliohms Max.
• Insulation Resistance: 500 Meg - Ohms Min. (500VDC)
• Dielectric Strength: 2500VAC - 1 Minute.
•
