Telecontrol FCC and CE certificated 8 two-steop push buttons F24-8D industrial wireless remote control switch
(4 motions, 8 dual speed buttons, Rotary magnetic switch,start button, mushroom E-stop)
Main features:
- Durable nylon-fiber housing for extra shock resistance
- 9 functions keys (8 dual speed push buttons+1start button), mushroom emergency STOP, toratry magnetic switch
- Up to 15 control contacts
- With battery voltage warning device, the power supply is cut off during low power
- Program the button function by computer interface
- All function buttons can be programmed to normal, toggle, interlock and switch and other functions
- The start button can be programmed to start, toggle or normal, etc
- Feature acceleration delay time control (smooth moving for multiple speeds cranes)
- Operating range up to 100 meters
- Pre-wiring standard cable making installation quick and easy.
- It adopts dual switching power supply design, and more stable, energy saving and flexible, and suitable for different voltage requests from 18-440V/AC/DC

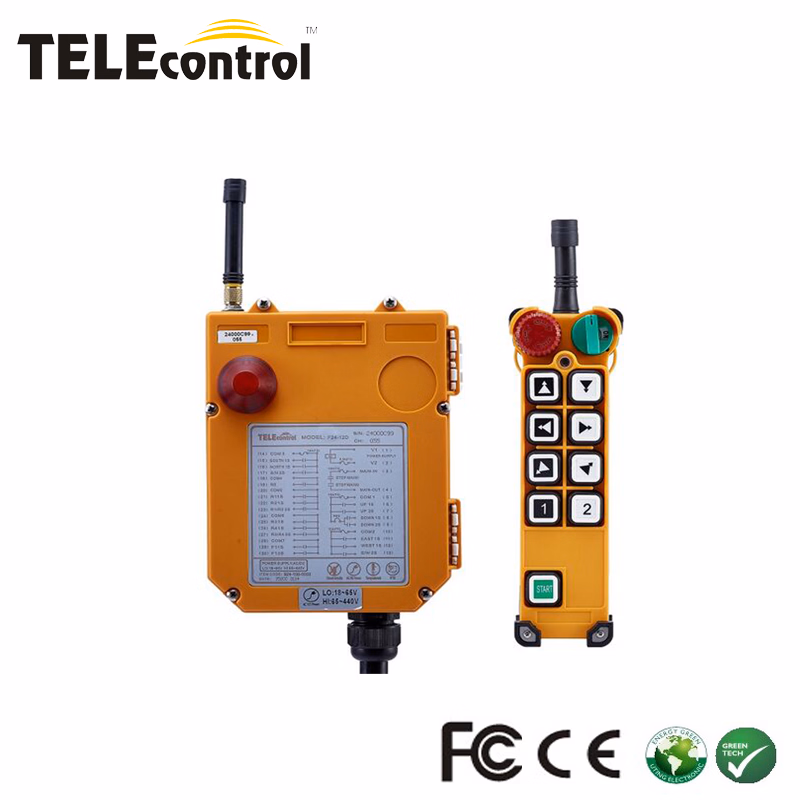

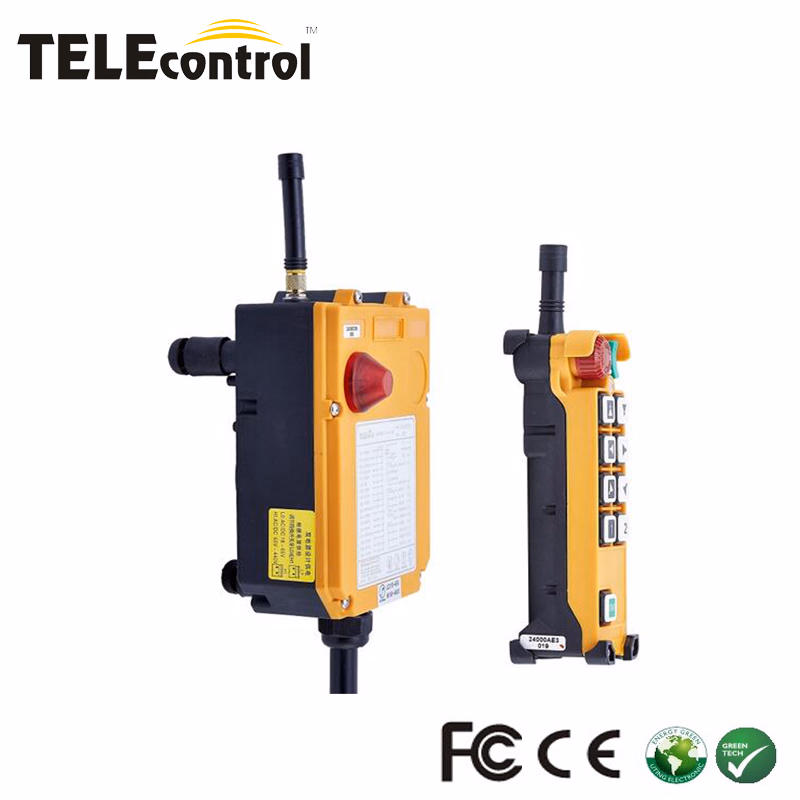

F24-8D The complete set radio remote controls includes 1 transmitter and 1 receiver:
| Transmitter parameters:F24-8D-TX | |
| Material | Glass-Fiber PA |
| Enclosure protection class | IP65 |
| Frequency range | VHF:310-331MHz;UHF:425-446MHz |
| Transmitter power: | <10dBm |
| Receiver power supply | 2 AAsize batteries |
| Safety Code | 32 bits(4.3billion) |
| Temperature range | -40ºC~+85ºC |
| Control distance | up to 100 meters |
| Transmitter parameters:F24-8D-RXC | |
| Material | Glass-Fiber PA |
| Enclosure protection class | IP65 |
| Frequency range | VHF:310-331MHz;UHF:425-446MHz |
| Receiver sensitivity | -110dBm |
| Receiver power supply | AC/DC 18-65V /65-440V/12V |
| Safety Code | 32 bits(4.3billion) |
| Temperature range | -40ºC~+85ºC |
| Control distance | up to 100 meters |
