Product Description

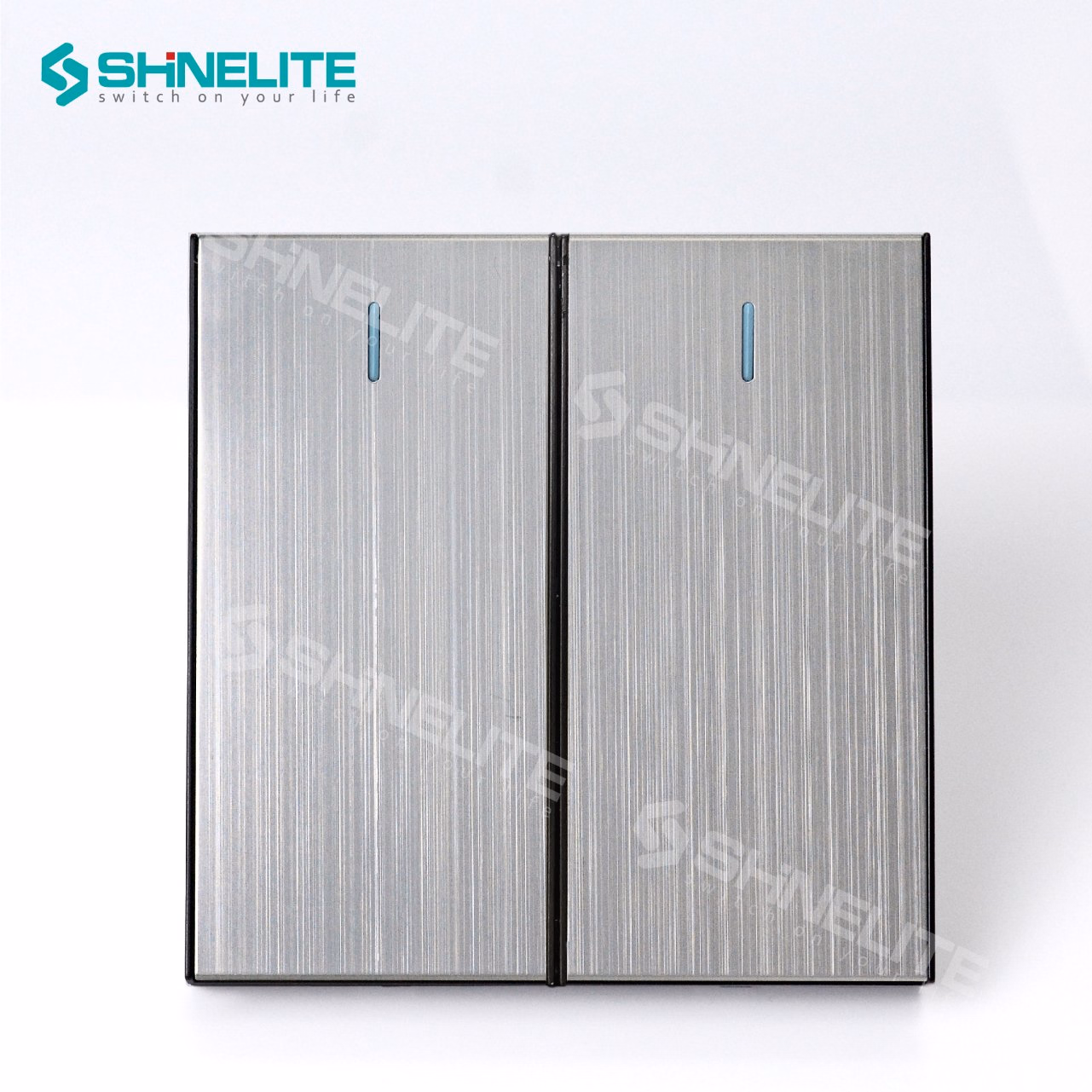

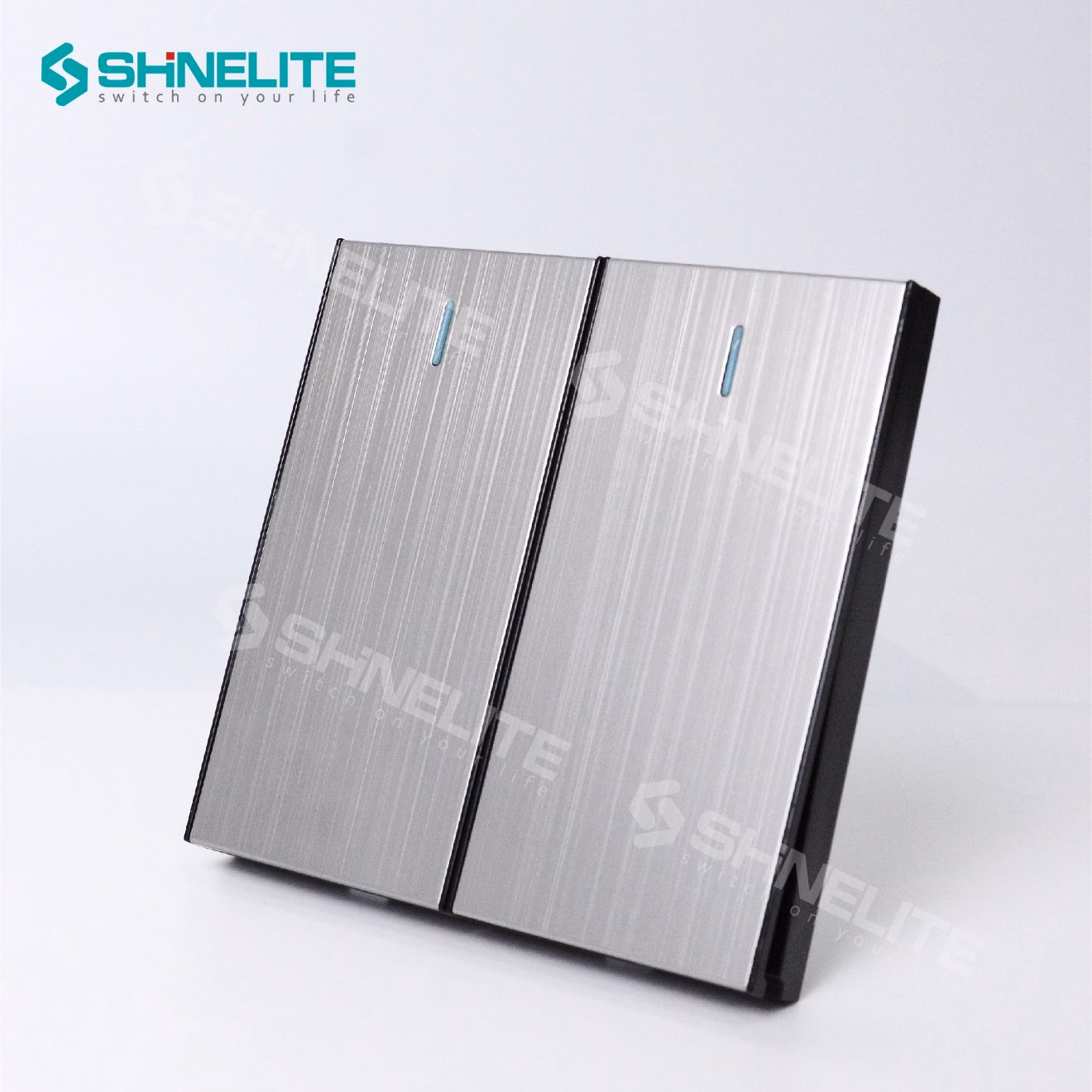

Shinelite Metal Plate 10A 2 Gang 2 Way Wall Light Switch
The switch contacts are made of high quality silver alloy material, which have a good performance against electric arc and melt weld. The on-off operations exceed 40000 times.
The socket are made of phosphor bronze, which have the character of good electrical conductivity and lasting elasticity.
Switch Specification
Socket Specification
Shinelite is a professional maanufacturer of British Standard switch socket for more than 12 years. Welcome to our website: www.shinelite.cc.
All of our products are qualified with CE CB certificate by Intertek. We promise you 15 years warranty.
We have bakelite/plastic/metal switch socket for your choice, welcome to your inquiry.
![Shinelite Metal 10A 2 Gang 2 Way Wall Light Switch](https://img3.grofrom.com/grewave/49e489ef0413a306195bcc1dc7029501.webp)
![Shinelite Metal 10A 2 Gang 2 Way Wall Light Switch](https://img3.grofrom.com/grewave/c85bb9a1127596a8dc2fb2c1b81360bf.webp)
![Shinelite Metal 10A 2 Gang 2 Way Wall Light Switch](https://img3.grofrom.com/grewave/36add44fac585efc30da04fedc031726.webp)
![Shinelite Metal 10A 2 Gang 2 Way Wall Light Switch](https://img3.grofrom.com/grewave/f78235b3d6c3720fd6941787d5da96ed.webp)
![Shinelite Metal 10A 2 Gang 2 Way Wall Light Switch](https://img3.grofrom.com/grewave/11974879823205ff8076827196e327c9.webp)
![Shinelite Metal 10A 2 Gang 2 Way Wall Light Switch](https://img3.grofrom.com/grewave/3dcc32d65cfcf764ef51b37baa0aee42.webp)
![Shinelite Metal 10A 2 Gang 2 Way Wall Light Switch](https://img3.grofrom.com/grewave/59ac5ceb33cec0aec9a213b403701005.webp)
![Shinelite Metal 10A 2 Gang 2 Way Wall Light Switch](https://img3.grofrom.com/grewave/334ad4adaaaa5ce855e8efd2fb170285.webp)
![Shinelite Metal 10A 2 Gang 2 Way Wall Light Switch](https://img3.grofrom.com/grewave/831f98dcc0dab875193400c0bc53aaa1.webp)
![Shinelite Metal 10A 2 Gang 2 Way Wall Light Switch](https://img3.grofrom.com/grewave/382453389dd9b1b4ae48a30cf51809f1.webp)
Shinelite Metal Plate 10A 2 Gang 2 Way Wall Light Switch
The switch contacts are made of high quality silver alloy material, which have a good performance against electric arc and melt weld. The on-off operations exceed 40000 times.
The socket are made of phosphor bronze, which have the character of good electrical conductivity and lasting elasticity.
Outline size: | 86X86mm |
Installation size: | 60 |
Material: | Plastic |
Copper: | QSn5.6-0.1 H62 Hpb59 |
Switch Specification
Lifetime | ≥40000 |
Heat-resistant | 100 • C / 1h |
Insulation Resistance | ≥5M Ω |
Damp Resistance | 48h > 5M Ω |
Temperature Raise | ≤ 45K |
Earthing Provision | ≤0.05M Ω |
Socket Specification
Lifetime | ≥5000 |
Heat-resistant | 100 • C / 1h |
Insulation Resistance | ≥5M Ω |
Damp Resistance | 48h > 5M Ω |
Temperature Raise | ≤ 45K |
Earthing Provision | ≤0.05M Ω |
Electric Strength | 2000 V ~1 min |
All of our products are qualified with CE CB certificate by Intertek. We promise you 15 years warranty.
We have bakelite/plastic/metal switch socket for your choice, welcome to your inquiry.
