Product Description:

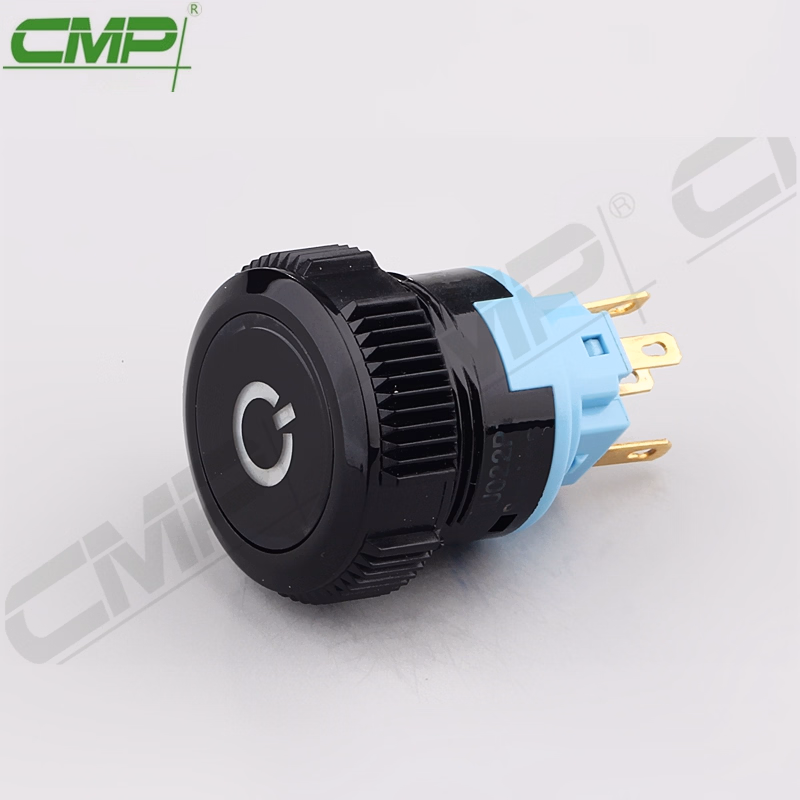

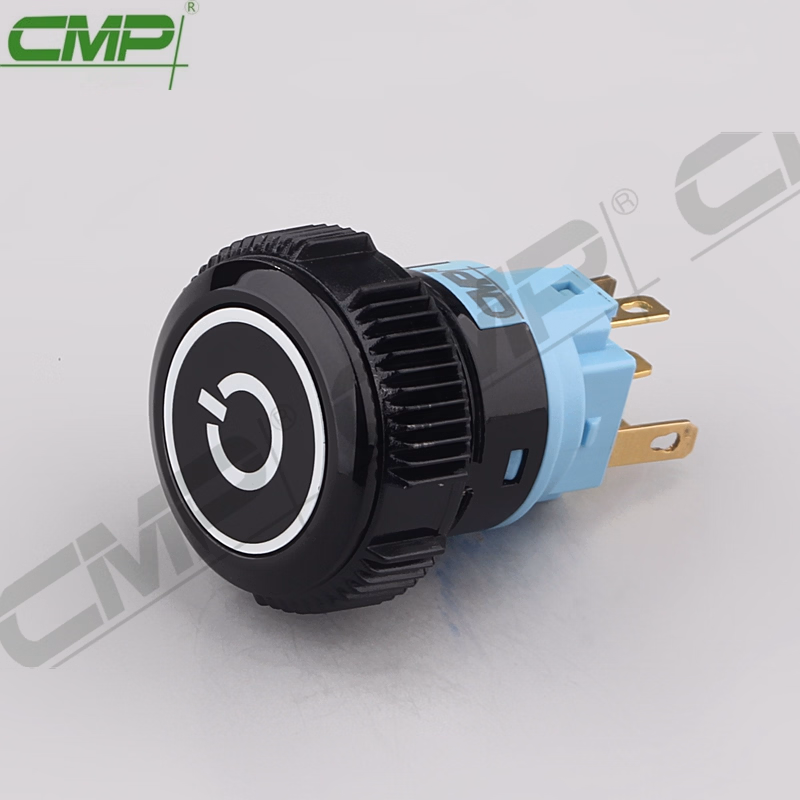

CMP metal or plastic illuminated black power switch on off push button


MU022P1/F11Z-EDY: 1NO1NC  Push button Switch with power symbol


1.Thread Diameter:22mm
2.Operation type:Latching (also have momentary type)
3.Housing material:plastic
4.Terminal type:soldering pin,(or solder with wires,socket)
5.Head type:Flat head with LED or not (ring,power,ring+power,custom symbol light)
6,LED color:red,green,white,blue,yellow,orange,bi-color, tri-color
   LED voltage: 3V,6V,12V,110V,220V..made to order
7.Contact configuration:1NO1NC (SPDT switch)
8,Switch rating: 5A/250V AC/DC
9, Mechanical life: 1000000 Cycles, Electrical Life: 50000 Cycles
10, Operating Temp:-20ºC~+55ºC
11,have TUV,CE,ROSH, SGS




 can customize the laser marking and colorized switch.





Introduce:





Certification:





Categories:

   Our company is push button switch and indicator light manufacturer for more than 10 years. We have a wide variety of switch and light products. If you are interested in these products, please feel free to send the inquiry. We can provide the factory price, and any detail can be discuss.





FAQ:

1. What time you can delivery?
 Small Order (1-3 Days) Big Order (5-7days)
2. What transportation you can usually choose ?
 EMS UPS DHL or by your request.
3. What is the packaging specification?
400pcs/CTN   31cm*28cm*36cm
