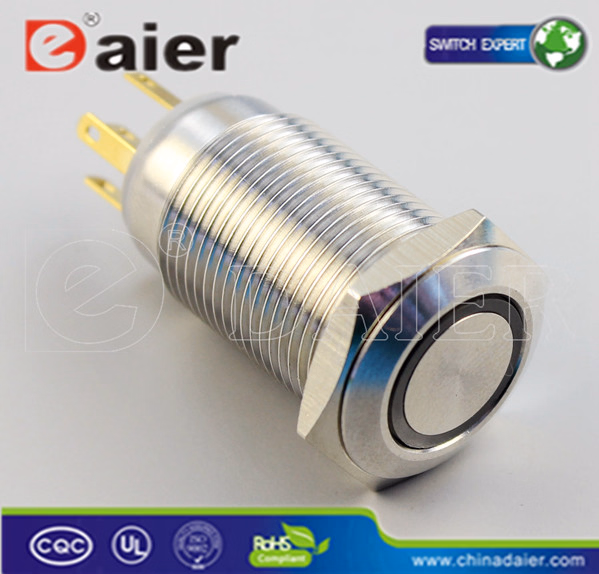

CE electric push button switch (LAS2-16F-11E)

PRODUCT : WATERPROOF PUSH BUTTON SWITCH Ring Light Momentary Push Buttons Switch (LAS2-16F-11E)BRIEF 16mm Push Button Switch1. 28 years\' manufacture2.  CE,Rohs,CQC certificate3.  Fast delivery Specification:  UsageExtensive UseTypePush ButtonFunctionLAS2-16F-11EMOFF- Momentary ON, SPDT ;

Featured Products


PRODUCT : WATERPROOF PUSH BUTTON SWITCH

Ring Light Momentary Push Buttons Switch (LAS2-16F-11E)


BRIEF

16mm Push Button Switch
1. 28 years' manufacture
2.  CE,Rohs,CQC certificate
3.  Fast delivery


Specification:

UsageExtensive Use
TypePush Button
FunctionLAS2-16F-11EMOFF- Momentary ON, SPDT ; Solder Terminal
LAS2-16F-11ELON-OFF , SPDT, Solder Terminal
LAS2-16F-22EMOFF- Momentary ON, DPDT ; Solder Terminal
LAS2-16F-22ELON-OFF , DPDT, Solder Terminal
 Rated Voltage  250VAC
Rated Current3A
Protection Level IP67
Contact Type1NO
MaterialChrome plated Brass /Stainless steel
LED ColorRed/Green/Yellow/White/Blue
LED Volt3V/6V/12V/24V/110V/220V
Minimum Applicable Load5V AC/DC,1mA
Contact MaterialSilver Plated
CertificateCE,Rohs
Terminal Style110" Solder/Quick Connect

Operating Temperature-25°C ~+55°C
Operating Humidity45%~85% RH
Contact Resistance50mΩ   max.
Insulation Resistance100mΩ  min. (500V DC megger )
Vibration Resistance   10~55HZ, amplitude 1.2mm p-p
Degree of Protection>10g
Electrical Life100,000 operations min. (at full rated load)
Mechanical Life
Maintained:1,000,000 operations min.
Momentary:1,000,000 operations min.

Dielectrical Life

Switch Unit: 2,000VAC,1 minute between terminals of same pole;
             1,000VAC,1minute between contact and lamp terminals.
             Illumination Unit:2,000VAC,1min. Between live part/ground

Soldering Temperature
20W/5 seconds or 260 °C/3 seconds


If you want find this various of Push Button Switch, you can enter our homepage to check and confirm. Of course, if you have any other questions that you could not know clearly, you can contact me by Alibaba trade manager or email to me directly .We will be very glad to answer your questions.


SHIPPING  & PAYMNET

1. We can ship items to all over the world. And we had been shipped to many countries like Italy, Spain, France, Iran and so on.
2. Shipping fee is cheap, and if you need other ways of shipping You can contact me too !
3. Payment is safe and easy, you can pay me online or others .Push Button Switch 120V Momentary Push Button Switch 120V Momentary Push Button Switch 120V Momentary Push Button Switch 120V Momentary Push Button Switch 120V Momentary


OTHERS

Please kindly inform us which items you are interested, and the best price will be provided you upon receipt of your new enquiry ASAP.
Any questions about more items, please feel free to contact us.
We are sincerely looking forward to establish cooperative relationship with you.
Free sample is available!
If you need any parts, please kindly send us your drawing or sample for quotation.


COMPANY INFORMATION

Daier Electronics Co.,ltd is a professional manufacturer of electromechanical switches in Yueqing, China. Our factory covers an area of over 5,000 square meters, having a total staff of over 200 members. We are engaged in producing 9 categories and about 4,000 models of aluminum box, knob, footswitch, DC jack, potentiometer, rotary switch, push button switch and so on. With a principle of being creative, advancedand honest, we are always improving our products and services to better satisfy you customers.


PAYMENT & SHIPMENT

Paypal, T/T, Western union, MoneyGram, or other methods.
Ship wordwide by sea/air, DHL, UPS, TNT, FedEx and so on.


FEEDBACK

* We greatly appreciated your positive feedback and will do the same.
* Please kindly contact us before you decide to leave any neutral or negative feedback.
* We will try our utmost to help you solve the problem. Your information for us will be        protected strictly.
